UAYESOK 20ft CB Base Station Antenna, 27MHZ Aluminum Alloy CB Base Antenna, 3.5dBi High Gain & Low VSWR & All-Weather Resilience & Pre-assembled

Frequency Range: 26-28MHz; Bandwidth: 2MHz; Input Impedance: 50Ω; VSWR: less than 1.5; Maximum Power: 100W
3.5dBi Gain Optimizes signal concentration for clearer long-range communication. reducing interference in urban/rural areas
6 section aluminum alloy whip ; Connector Type: UHF-female(SO239); Length: ≤6200(mm); Gross Weight: 2.8(KG); Hold pole diameter: Φ55-Φ65(mm); Wind Velocity: 100(km/h)
All-Weather Resilience Durable and corrosion-resistant in -50°C to 70°C

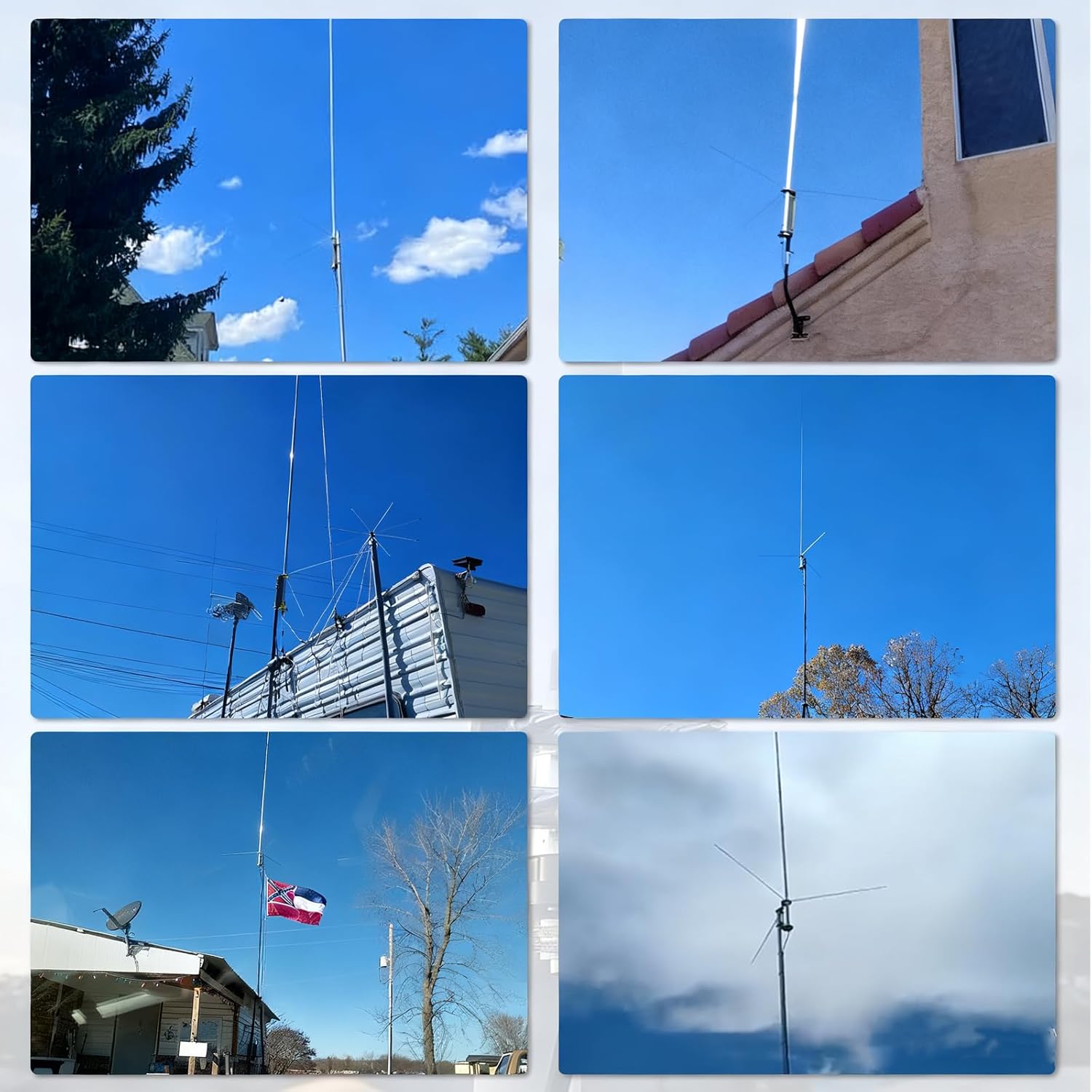

Easy Mounting & Stability Secure attachment to poles or masts for roof/tower installation. The antenna installation can be completed within 30 minutes
Packing Size: 1100*160*120(mm); with ground plane and installation instructions
Frequency Range26-28MHzBandwidth2MHzInput Impedance50ΩVSWRless than 1.5Gain3.5dBiMaximum Power100WMaterialaluminum alloyConnector TypeUHF-female(SO239)Length≤6200(mm)Gross Weight2.8(KG)Wind Velocity100(km/h)PolarizationVertical PolarizationLighting ProtectionDirect GroundAmbient temperature-50℃—+70℃

UAYESOK CB Base Antenna

Application

ELECTRICAL AND MECHANICAL SPECIFICATIONS
